3D security fence

3D security fence

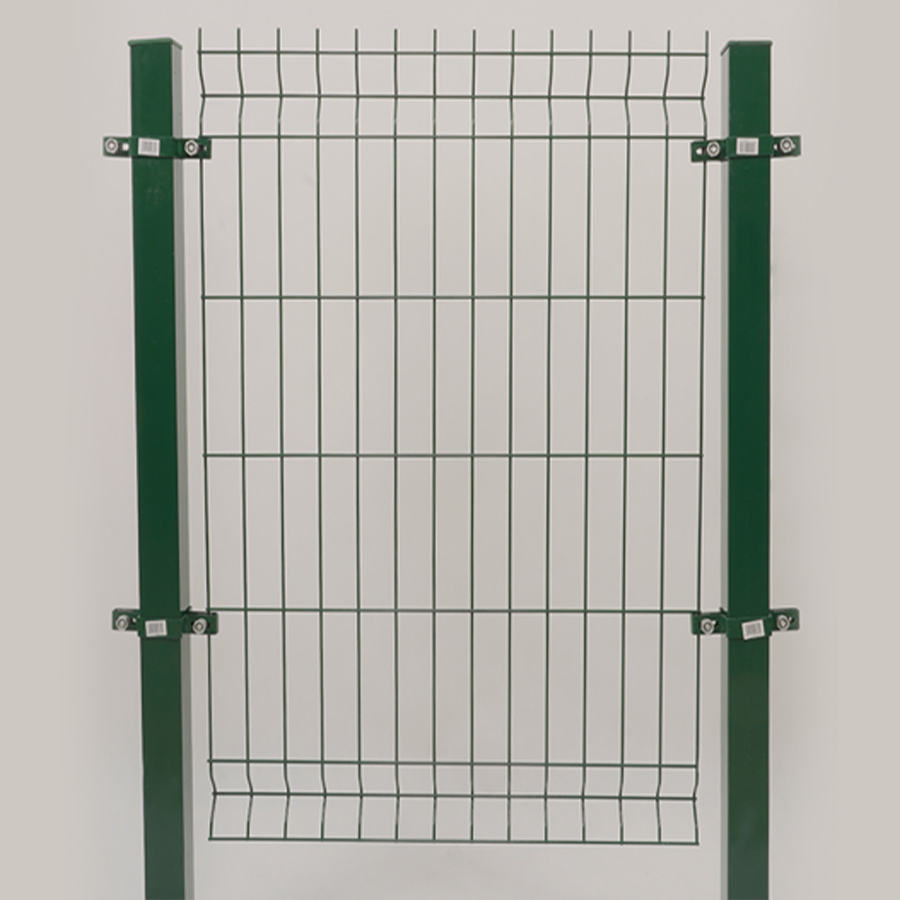

3D security fence，also known as Curvy welded fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction.

FBA

Specification

Application

Installation

Package

Features, Raw Materail

3D security fence，also known as Curvy welded fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction.

It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies.

Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.

Benefits

1、Rigidity: 3D panels with rectangular meshes, heavy wires and horizontal curves guarantee a very high level of rigidity.

2、Complete System: The system consists of panels in various heights supported by various types of posts, each with a specific fixing system. All types are available with adapted accessories and a wide range of swing and sliding gates.

3、Long Lifetime: Zinc Aluminium galvanised wires in combination with an advanced polyester coating technology ensure an extra long life, even in corrosive environments. An additional layer is applied after galvanisation in order to ensure the optimal adhesion of the polyester coating.

4、Efficient and Fast Installation:All 3D components are developed to provide a professional system that can be installed easy and quickly.
10 Years Guarantee: The 3D range is 10 Year Guarantee - even in corrosive or harsh environments.

NYLOFOR 3D EXTREME RANGE
Fence height mm	Panels width x height mm	Number of curves per pane
630	2500*630	2
830	2500*830	2
1030	2500*1030	2
1230	2500*1230	2
1530	2500*1530	3
1730	2500*1730	3
1930	2500*1930	3
2030	2500*2030	4
2430	2500*2430	4

Surface Treatment:
galvanized

galvanized + powders spray coating

galvanized + PVC dip coating
hot dipped galvanized

hot dipped galvanized + powders spray coating

hot dipped galvanized + PVC dip coating

1、Perimeter Security:3D wire mesh fence is commonly used for perimeter security in residential, commercial, and industrial properties. It provides a high level of security, making it difficult for intruders to climb or cut through the fence.
2、Crowd Control:3D wire mesh fence is often used for crowd control at events, concerts, and other public gatherings. It can be easily installed and removed, allowing for flexibility in managing crowds.
3、Sports Enclosures:3D wire mesh fence is a popular option for sports enclosures, such as tennis courts, basketball courts, and soccer fields. It provides a clear boundary for the playing area and can withstand impact from sports equipment and players.
4、Animal Enclosures:3D wire mesh fence is a practical choice for animal enclosures, such as dog runs and livestock pens. It provides a secure and durable barrier that can withstand the elements and the wear and tear from animals.
5、Landscaping:3D wire mesh fence can also be used for landscaping purposes, such as creating a decorative fence around a garden or outdoor space. It can be customized in terms of color and design, allowing for a range of creative options.
