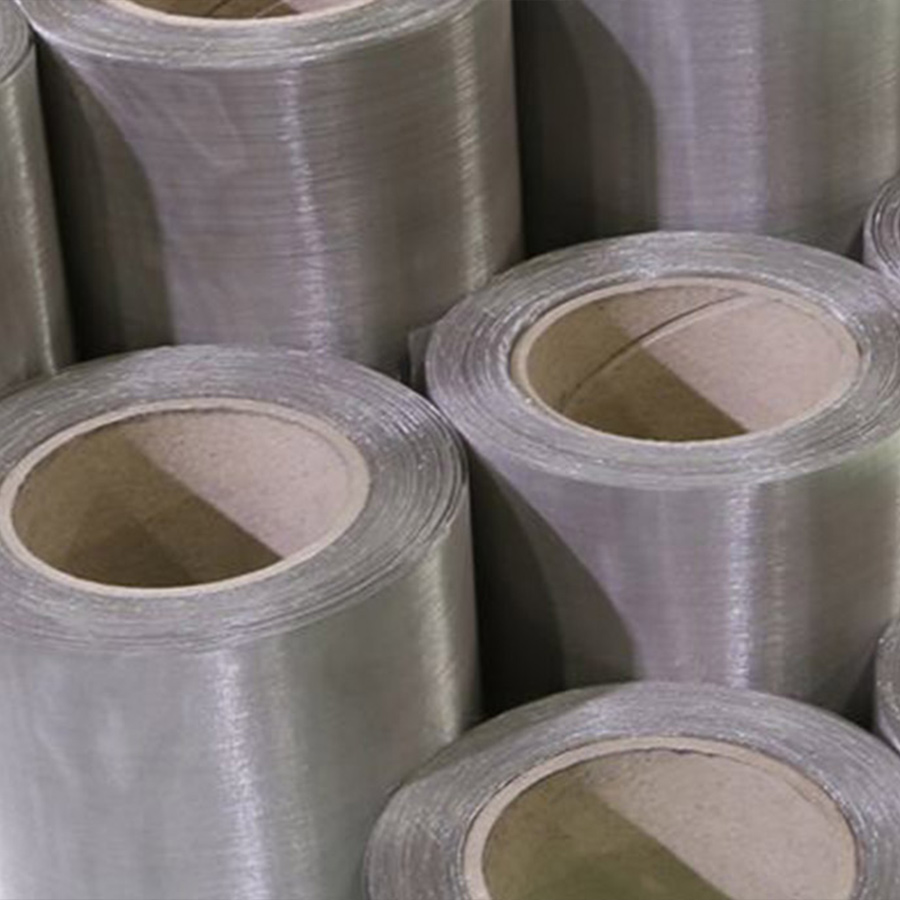

Stainless steel wire mesh
Stainless steel wire mesh is a mesh-like material woven from stainless steel wire through warp and weft weaving. It possesses outstanding corrosion resistance, high-temperature resistance, and mechanical strength, making it widely utilized across various industries.
Features,Benefit
Stainless steel wire mesh is a mesh-like material woven from stainless steel wire through warp and weft weaving. It possesses outstanding corrosion resistance, high-temperature resistance, and mechanical strength, making it widely utilized across various industries.
Based on the mesh opening type and weaving method, stainless steel wire mesh can be categorized into the following types: Square Mesh (Plain Weave, Twill Weave); Dutch Weave Mesh (Plain Dutch Weave, Twill Dutch Weave, Double Warp Dutch Weave, Reverse Plain Dutch Weave, Reverse Twill Dutch Weave, Optimized Design)
Advantage
1、Flat mesh surface, tightly weaved and uniform color
2、Uniform mesh opening, high and stable filtration accuracy
3、Accurate control of net weight per unit area to gram
4、Good formability mesh surface
5、Any length can be provided by continuous loading
6、With the most advanced weaving equipment in the industry
Raw Materials
Stainless steel wire mesh is made of stainless steel wire through warp and weft woven. 302 SS, 304 SS, 304L SS, 310 SS, 316 SS, 316L SS, 317L SS, 321 SS, 330 SS, 347 SS, 410 SS, and 430 SS is the material grades of our stainless steel wire mesh we produce. and our product mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.
Meshes perLinear inch | Wire diameter | Width of opening | Open area | ||
inch | mm | inch | mm | percent | |
1×1 | 0.157 | 4 | 0.84 | 21.4 | 71 |
2×2 | 0.118 | 2.5 | 0.38 | 10.2 | 64 |
3×3 | 0.079 | 2 | 0.25 | 6.4 | 58 |
4×4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
4×4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 |
5×5 | 0.055 | 1.4 | 0.14 | 3.68 | 52 |
6×6 | 0.047 | 1.2 | 0.12 | 3.03 | 51 |
8×8 | 0.43 | 1.1 | 0.08 | 2.08 | 42 |
10×10 | 0.039 | 1 | 0.06 | 1.54 | 36 |
10×10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 |
12×12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 |
12×12 | 0.02 | 0.508 | 0.063 | 1.6 | 57.2 |
14×14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
14×14 | 0.02 | 0.508 | 0.051 | 1.3 | 51 |
16×16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
18×18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
20×20 | 0.02 | 0.508 | 0.03 | 0.76 | 36 |
20×20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 |
24×24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 |
30×30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 |
30×30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
30×30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 |
35×35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
40×40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 |
50×50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 |
50×50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 |
60×60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
60×60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 |
70×70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 |
80×80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 |
80×80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 |
90×90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 |
100×100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
100×100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 |
100×100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 |
110×110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 |
120×120 | 0.0037 | 0.094 | 0.0046 | 0.1168 | 30.7 |
150×150 | 0.0026 | 0.006 | 0.0041 | 0.1041 | 37.4 |
160×160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 |
180×180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 |
200×200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 |
250×250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 |
270×270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 |
300×300 | 0.0015 | 0.0381 | 0.0018 | 0.0457 | 29.7 |
325×325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 |
400×400 | 0.001 | 0.0254 | 0.0015 | 0.037 | 36 |
500×500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 |
635×635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 |
Stainless steel wire mesh is made of stainless steel wire through warp and weft woven.
Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.
With resistance for acid, alkali, high temperature and grind, it is widely used in industries like petroleum, petrochemical, automotive, new energy, food, pharmacy and others.
